Truck trailer repair in Newbridge
Breakdown Repair on an Aluminium Semi-Trailer
This truck trailer repair was an emergency breakdown call-out for Central Vic Equipment, on site in Newbridge. The aluminium mount for the air actuator that works the trailer’s retractable tarp had broken off. Troy reworked the lug and TIG welded it back on, and the semi-trailer went back on schedule that day.
Job at a glance
Read time
5 min read
Job location
Newbridge, Victoria
Job brief
Broken actuator mount welded back on a semi-trailer
Materials: aluminium · Finish: bare aluminium · Work done: on site in Newbridge
The repair
How Did Troy Handle the Truck Trailer Repair on Site?
Central Vic Equipment needed a semi-trailer repaired that day, inside a set window, so it could keep its schedule. The aluminium mount for the tarp’s air actuator had broken off the trailer. Troy removed the broken lug and reworked it ready for welding. He ground and cleaned the joint, then TIG welded it back on at the trailer.
Central Vic Equipment is a machinery sales, service and hire business based in Castlemaine, and it does contract work for the trailer’s owner. When the mount broke, they rang Troy and asked him to come out to the truck in Newbridge.
The actuator is air operated. It opens and closes a retractable tarp over the top of the trailer, which stops material leaving the trailer in transit. Its aluminium mount on the trailer is the part that broke.
The truck wasn’t on site yet when Troy arrived, and it had to be cleaned down before any welding could start. Once it was ready, he got straight on with the repair.
What went into it?
No new metal. Troy reused the original aluminium lug, reworking it so it was ready to weld back on. He ground and cleaned the joint first, because clean, uncontaminated aluminium gives a sound weld with good penetration.
Which welding processes did Troy use?
TIG, which suits aluminium. Troy ran it off the welding generator on his site-ready ute. The whole repair was done at the trailer, with no need to move it to a workshop.
The finish
How Was It Finished?
Troy left the repair as bare aluminium, and the trailer was back on its run that day. The mount broke from repeated use over time, so this is a watch-and-monitor repair. If it fails again, the plan is to redesign the bracket or laminate it with an extra layer of plate.
The customer was happy with the result.
Location
Where Was This Job?
Troy did this truck trailer repair on site in Newbridge, in the Loddon Shire west of Bendigo. He regularly services Greater Bendigo and reaches further for emergency and on-site work. Get in touch to confirm he can get to you.
Photos
What Did the Job Look Like, Start to Finish?
Three photos from the day, from Troy’s ute set up at the trailer to the mount welded back on. Signage on the trailers has been blurred.

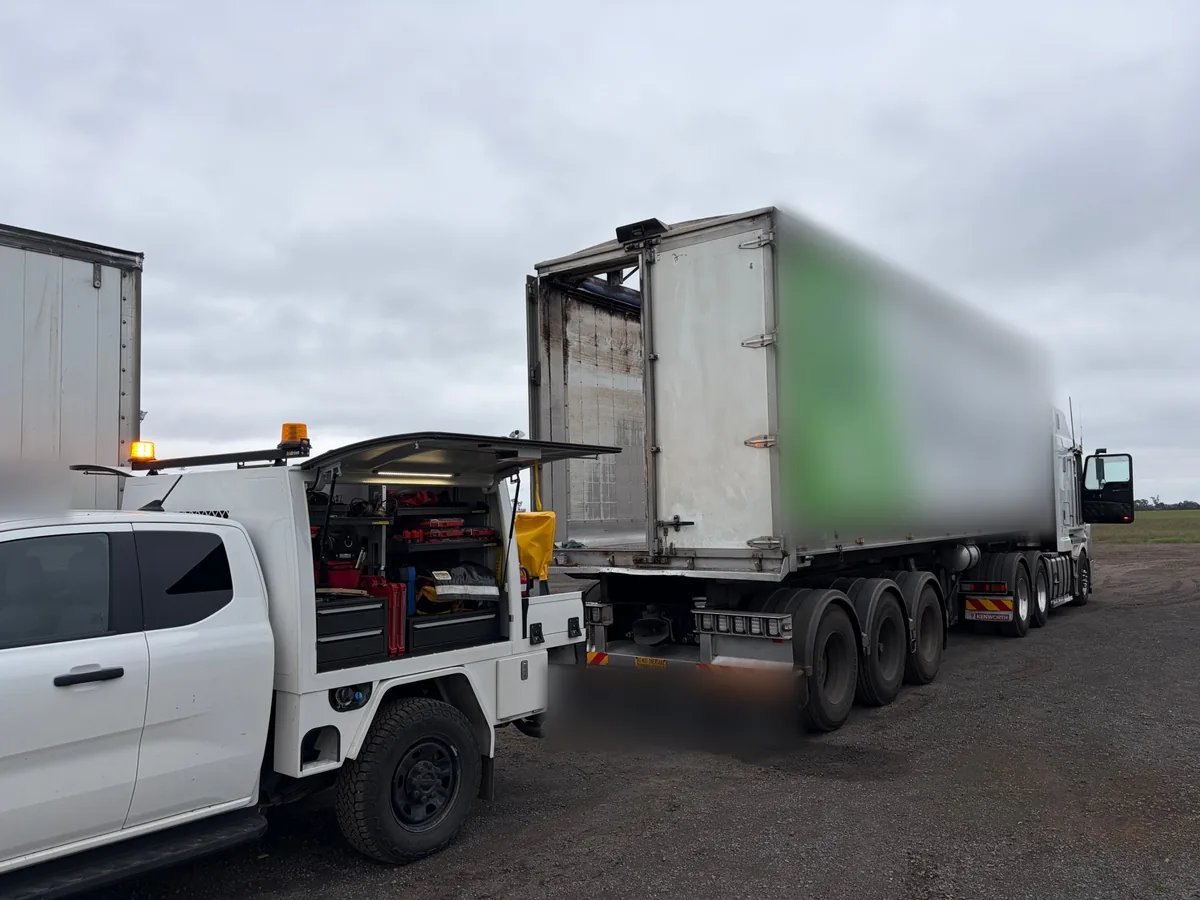

During. Troy’s site-ready ute set up at the back of the semi-trailer, canopy open.

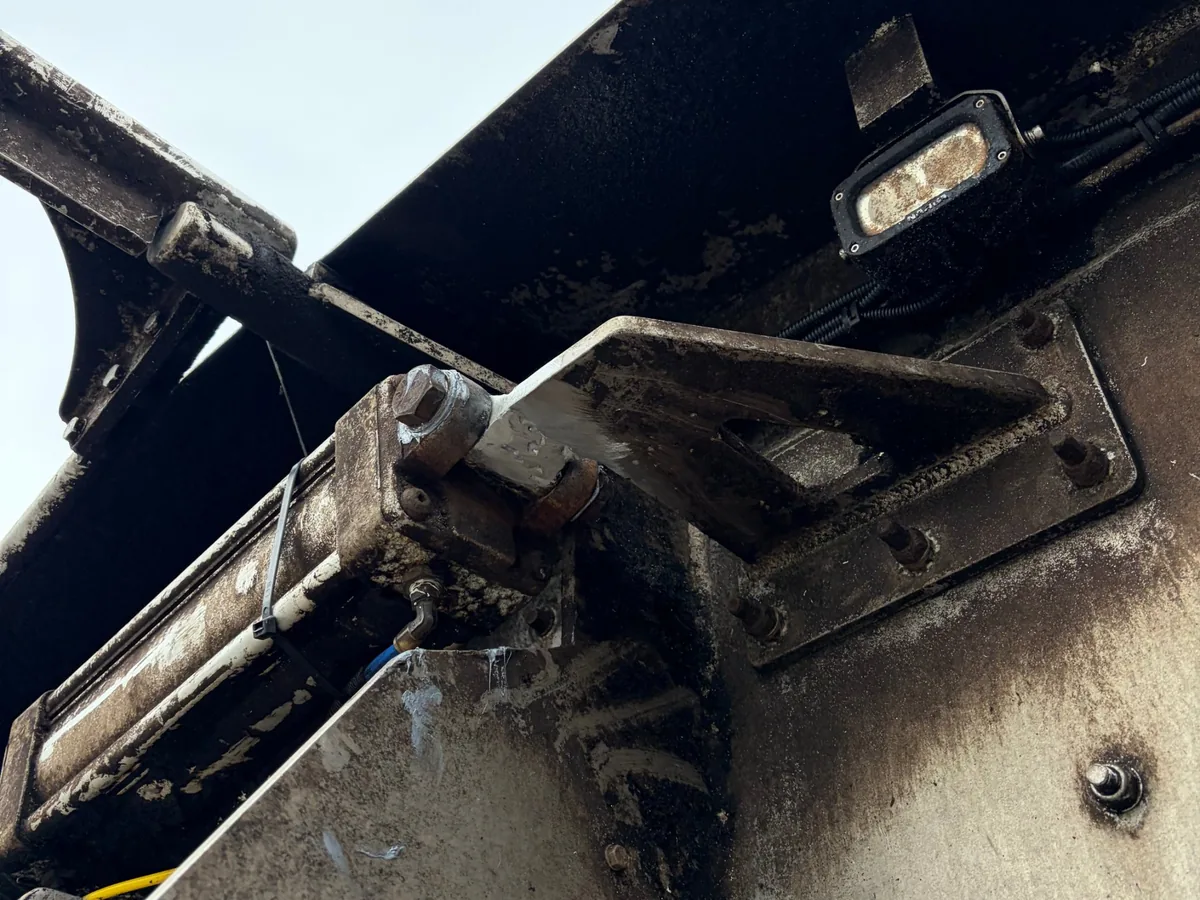

After. From below: the air actuator pinned to its repaired mount on the trailer.

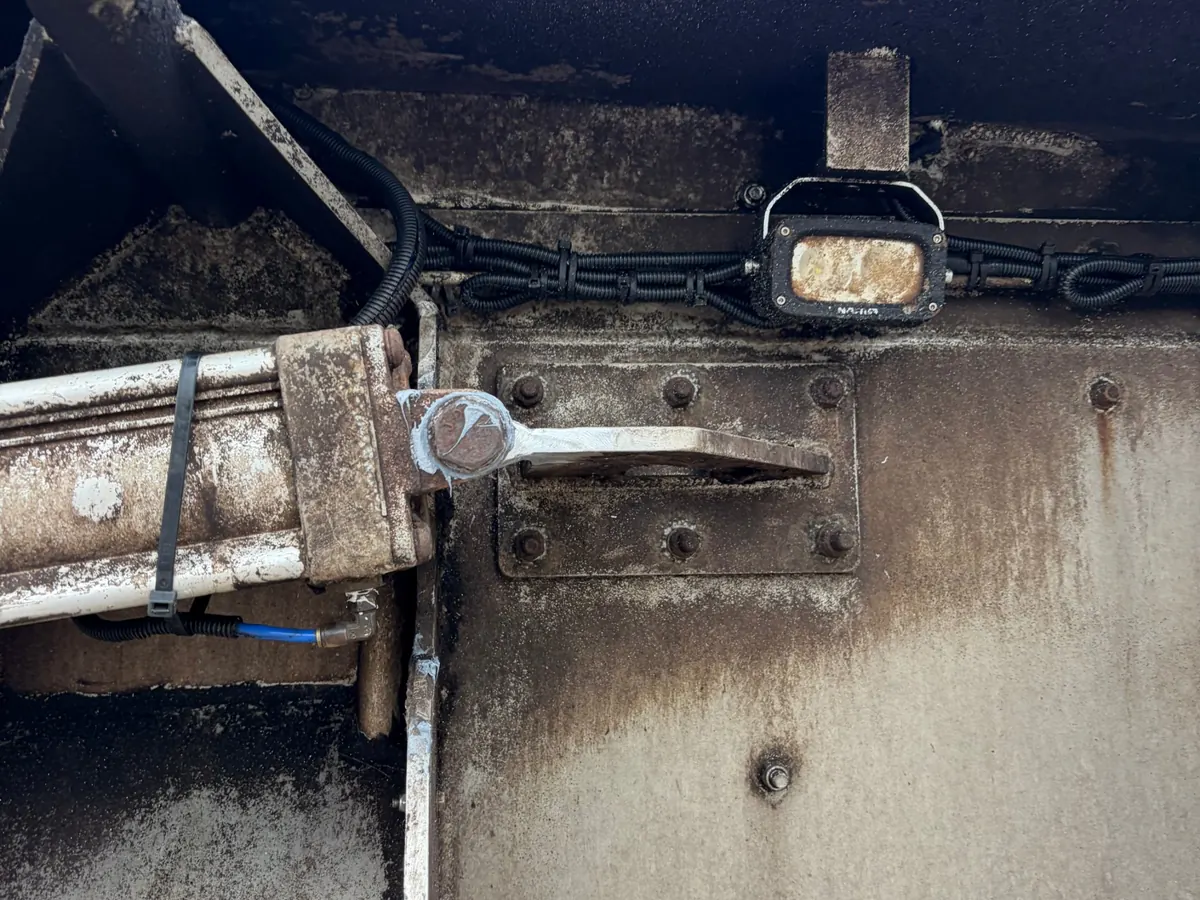

After. The reworked aluminium lug, TIG welded back on, with the actuator pinned to it.
Quick answers
Questions People Ask About Broken Trailer Brackets
Can a broken bracket on an aluminium trailer be welded back on?
Often, yes. If the bracket or lug is still in good shape, Troy can rework it and TIG weld it back on. That’s what he did on this job, after grinding and cleaning the joint. If the part is too damaged, he’ll tell you straight and talk through making a new one.
Does the trailer need to be cleaned before it’s welded?
Yes, around the repair at least. Aluminium needs clean, uncontaminated metal for a sound weld with good penetration, so dirt, grease and residue from the load have to come off first. Troy grinds and cleans the joint himself before welding. On this job the trailer was also cleaned down before work started.
Why do actuator brackets on trailers break?
Usually from repeated use over time. Every time the tarp opens and closes, the actuator pushes and pulls on its mount, and that load adds up. That was the main cause on this job. Troy works out why a part failed, not just where, before he decides how to repair it.
Should a broken bracket be strengthened when it’s repaired?
It depends on why it broke. If a bracket failed from repeated use over time, a sound repair that’s watched can be the right first step. A redesign or lamination is then planned in case it fails again. If the design can’t take the load, strengthening it straight away often makes more sense.
